Charts

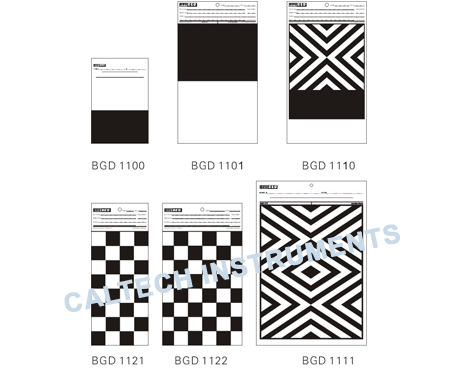

BIUGED INSTRUMENTS offers a wide range of drawdown cards and charts for virtually any application and coating material. Stringent equality control during the production process assures that they have the most consistent color and gloss in the industry. Test charts are easy to use and an economical substrate to test a variety of coating properties, such as opacity, spreading rate,  and flow& leveling behavior. They are used for testing architectural, industrial, automotive, wood finishes or even cosmetic products(e.g. nail polish).Depending on the material properties of the product to be tested and its usage different typesof drawdown cards are available.

Selection of test charts dependenton coating technology
Depending on the types of solvent used in paint formulations a drawdown chart needs to be more or less solvent resistant. The resin type requires differentsolvent types and dependent on the polarity of the solvent, the organic ingredients will be more or less activated. Therefore, BIUGED offers two types of drawdown cardsand charts.

Clear-coated Charts:
Are ideal for a wide rangeof coating systems: water and solvent borne technologies
Guaranteed non-fluorescent paper in compliance with ASTM D 344
Repeatable color and gloss-lot after lot
Superior adhesion characteristics, especially with latex paints
Rugged design (0.5 mm thickness)to prevent warping and bending after the coating is applied.
Package is shrink-wrapped with low permeability plastic to prevent moisture absorption during shipping and storage.
Lot number are printed onevery charts

Film Laminated Charts:
With excellent solvent resistance
Repeatable color and gloss-lot after lot
Smooth, structure free surface
Superior adhesion propertiesand flexibility
With 0.5 mm thickness
Double film laminated will not warp and bend-even in highhumidity environments.

Selection of test charts dependenton application

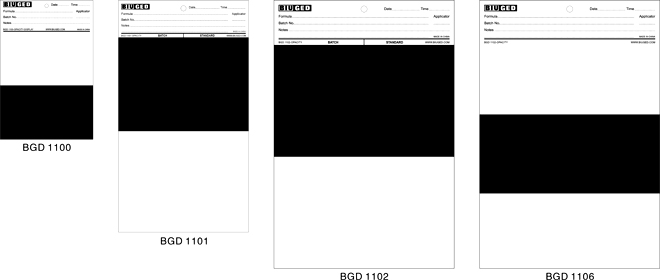

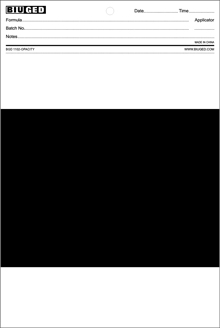

1. Opacity Charts
Comprised of a simple combination of black and white areas. The reflectance of black area<1;reflectance of with area:80±2。
with ample for reflectance measurement
With the lot number printed on every chart
Order information:
Order information Description Material Dimensions Qty/Box Price for one piece($)
BGD 1100 Opacity charts  Film Laminated 150×100mm 1,000 0.09
BGD 1101 Opacity charts  Film Laminated 250×140mm 500 0.12
BGD 1102 Opacity charts  Film Laminated 289×194mm 500 0.18
BGD 1103 Opacity charts  Clear-coated 150×100mm 1,000 0.18
BGD 1104 Opacity charts 2A Clear-coated 250×140mm 500 0.24
BGD 1105 Opacity charts  Clear-coated 289×194mm 500 0.36
BGD 1106 Opacity charts 3B Clear-coated 289×194mm 500 0.36


Opacity Measurement :
Essential sales criteria for architectural paint are hiding power and yield. In other words:
---How many layers are necessary for complete coverage?
---And how many cans will be needed?
Opacity(%)=Y black×100(%)/Y white
100% opacity means complete hiding, nodifference can be seen between the drawdown over black and white.

Procedure :
A uniform paint film is applied on ablack/white contrast chart. After air drying the drawdown can be objectively evaluated using the BIUGED opacity meter. The operator is menu guided through the measurement procedure and the opacity value is displayed automatically in asecond.
The same procedure can be applied for transparent films and plastics.

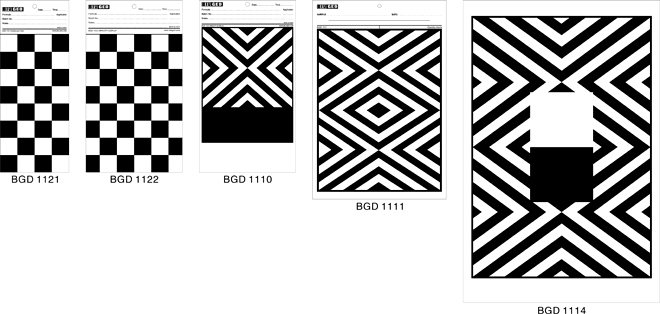

2. CheckerboardCharts/Spreading Rate Charts
Large size drawdown charts, referred to as display or spreading rate charts, were designed for visual evaluation of hiding powder. The diagonal striped patterns or the checkerboard respectively have a strong visual impact and emphasize variations in film opacity.

In order to calculate the spreading rate ASTM D 344 uses Forms 8H and 10H. In this test the paint is spread uniformly on a defined test area(0.1square meters~1 square foot)and the spreading rate is calculated from the weight and density of the appliedcoating.

Order information:
Order information Description Material Dimensions Qty/Box Price for one($)
BGD 1110 Opacity-Display Charts  Film Laminated 250×140mm 500 0.12
BGD 1111 Display Spreading Charts  Film Laminated 289×194mm 500 0.18
BGD 1112 Opacity-Display Charts 9A Clear-coated 250×140mm 500 0.18
BGD 1113 Display Spreading Charts 8B Clear-coated 289×194mm 500 0.36
BGD 1114 Opacity-Display Spreading Rate 14H Clear-coated 438×286mm 250 0.67
BGD 1121 Checkerboard Spreading Rate  Film Laminated 250×100mm 1000 0.09
BGD 1122 Checkerboard Spreading Rate  Film Laminated 250×140mm 500 0.12
BGD 1123 Checkerboard Spreading Rate  Clear-coated 250×140mm 500 0.24



3. Sag and leveling Test Charts
This drawdown charts is designed for use with BGD 225 sagging tester or BGD 226 leveling tester.
The extra large black area allows measurements to be made over the black area only, in accordance with specifications that Require the operator to ignore the leading andtrailing edges of the drawdown.

Order information:BGD 1109---Sag and leveling Test Charts
