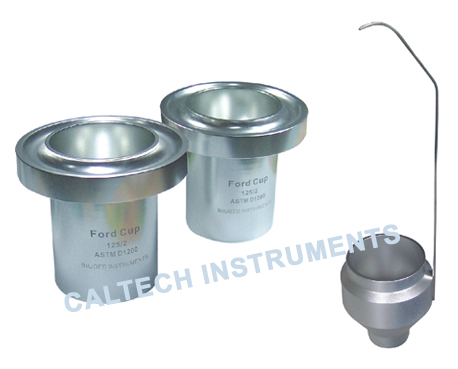

Ford Cups
Ford Cups
Ford Cups produced by our company are in accordance with International Standard ASTM D1200, D333, and D365. For easy measurement of the viscosity of paints, inks, lacquers and other liquids. All Biuged Ford cups are machined anodic oxidation aluminum with removable stainless steel orifice and are guaranteed to be within 2% throughout the recommended range of use.

Main Technical Parameters：
Internal Diameter：50±0.05mm
Outer Diameter：86±0.1mm
Internal Orifice Length：10±0.1mm
Production Tolerance：±2%
Details of each Ford Cups

Details/Ford cup Ford Cup
(2#)		 Ford Cup
(3#)		 Ford Cup
(4#)		 Ford Cup
(5#)		 Portable Ford Cup (4#)
Internal Vertical Height 43±0.1mm 43±0.1mm 43±0.1mm 43±0.1mm 43±0.1mm
Internal Orifice ф（mm） 2.53 mm 3.4 mm 4.1 mm 5.2 mm 4.1 mm
External Orifice ф（mm） 5.0±0.5mm 5.5±0.5mm 6.0±0.5mm 7.6±0.5mm 6.0±0.5mm
Centistokes Range 25-120 49-220 70-370 215-1413 70-370
Efflux Time（sec）±0.2 40-100 25-105 20-105 20-105 20-105
Ordering Information BGD 125/2 BGD 125/3 BGD 125/4 BGD 125/5 BGD 125/4P
