Printing Proofer
Printing Proofer
High quality proofs using gravure, gravure-offset or flexo inks are produced instantly using the BGD Printing Proofer. Featuring electronically engraved printing plates and variable printing speeds of up to 45m/min, this is an essential tool for all those involved in the manufacturing or use of liquid inks. Ideal for R &D and computer colour matching data, quality control and presentation samples. And these Printing Proofers are very easy to clean and all parts are solvent resistant.
Almost any flexible substrate can be printed or laminated
Excellent printability ensured by micrometer control
Multiple ink samples may be printed simultaneously for comparison purposes
High printing speeds enable use of inks nearing press viscosity

Ordering Information →
Parameter ↓
BGD 622/1 BGD 622/2 BGD 622/3
Applicable for Gravure Ink Flexographic Ink Water based Inks
Motor Power 120W 120W 70W
Impression roller Φ76×130mm Φ50×130mm Φ19×153mm
Roller Hardness Shore A  55 Shore A  50 Shore A  45~50
Printing Speed Four sorts :20-30-40-45m/min Four sorts:20-30-40-45m/min 4-15 m/min (Adjustable variable speed)
Printing Length 150mm 150mm 180mm
Power 220V 50Hz 220V 50Hz 220V 50Hz
Overall Size 500×425×350mm 500×425×350mm 500×425×240mm
Wight 26kg 27kg 20kg
Printing Plate:
Printing plates for use with the Printing Proofer are electronically engraved in exactly the same way as production cylinders. A choice of one or more of the standard plates available will normally be satisfactory.

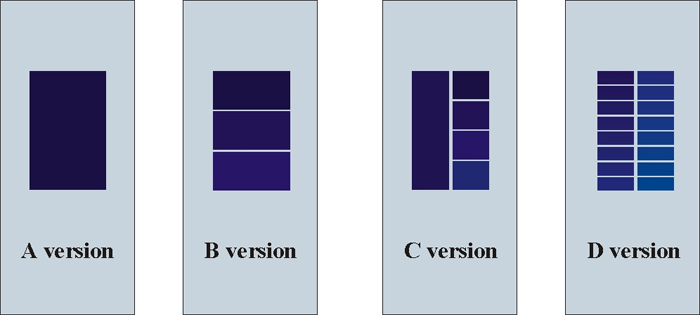

TYPE Number of Lines (Lines/inch) Density (%) Remark
A1 150 100 Solid Area Plate
A2* 100 100
B1 150 100-80-60 Single 3 Wedge Plate
B2* 150 100-90-80
C1 150 100-90-80-70 90 1+4 Wedge plate
C2* 300 100-90-80-70 90
C3* 175 100-90-80-70 90
C4* 175 80-60-40-20 100
D1 150 100-95-90-85-80-75-70-60 100-95-90-85-80-75-70-60 Double 8 Wedge Plate
D2* 150 40-35-30-25-20-15-10-5 80-75-70-65-60-55-50-45
Note: “*” are special plates and need custom-made
