Versatile Sand-Milling Dispersing-agitator
Versatile Sand-Milling Dispersing-agitator

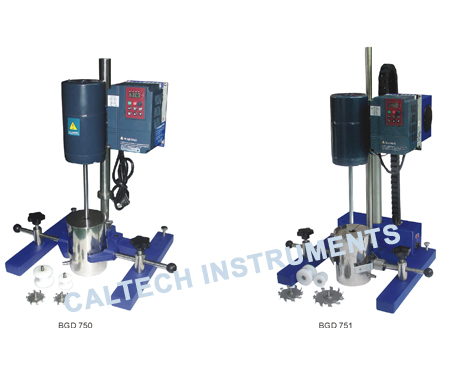

BGD 750 series Versatile Sand-Milling dispersing-agitator is a new product designed by our company. It is equipped with two sand-milling discs, two dispersing blades and a double-layer stainless steel container. With only one machine, operator can finish such as sand-milling, high speed dispersing and mixing. Furthermore, electric lift design is very convenient for female operator.

Features:
With squirrel-cage motor of frequency control and use frequency converter to adjust working speed
Direct digits display axis revolution through display screen of frequency converter installed on the machine.
No carbon brush, no produce any flame when working
Lower noise, bigger torque and wider adjustable speed
Main parts are all made up of stainless steel, with perfect corrosion resistance
Standard confirguration:Two different size dispersing baldes , two different size sand-milling blades , a stainless steel double jacket container.
Power Supply:220V 50HZ
550W and 750W is bench-structure, size is 45×42×65 cm; Others are consol mode structure and size is 64×57×133 cm

Ordering Information Motor Power Speed
(r/min)
Container Capacity Lift Distance Lift System Dispersing blade Sand-Mill blade
BGD 750/1 550W 100-7,500 1.5 L 220 mm Spring lift by hand 50mm&60mm 45mm&60mm
BGD 750/2 750W 100-6,000 1.5 L 270 mm Spring lift by hand 50mm&60mm 45mm&60mm
BGD 750/3 1,100W 100-5,000 3 L 340 mm Electric 60mm&80mm 90mm&100mm
BGD 750/4 1,500W 100-5,000 3 L 340 mm Electric 80mm&100mm 90mm&100mm
BGD 750/5 2,200W 100-4,000 5 L 340 mm Electric 100mm&120mm 100mm&130mm
BGD 751/1 550W 100-7,500 1.5 L 300 mm Electric 50mm&60mm 45mm&60mm
BGD 751/2 750W 100-6,000 1.5 L 300 mm Electric 50mm&60mm 45mm&60mm
