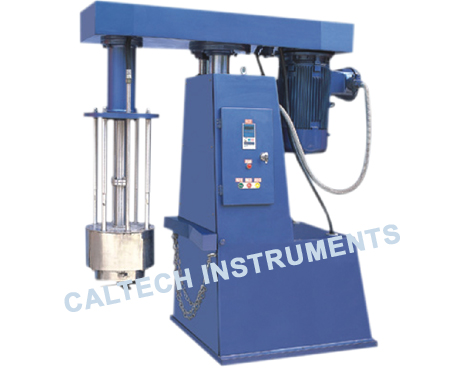

Basket Grinding Machine
This is a new model of fast highgrinder for materials with high or middling stickiness, one type with variablefrequency speed adjust and the other with electric frequency speed adjust; Amodel of ordinary design and a model of explosion-proof design are currentlyavailable for customers to choose from.

Characteristics:
Basket design renders a thorough change of the traditional mode of grind
Basket lift design makes the machine user-friendly while feeding and discharging
Dual-blade design at the bottom of the basket frees the ground material ofcirculation assist, saving energy and reducing cost.
Circulation cooling design in the secret compartment between the basketwall and inner container wallprovides effective protection for temperature-sensitive material.
Blade at the basket bottom feeding upwards, all-round interactivecollision spurred by the back and cross flows and convection between the groundmaterials and intermediary agent in the basket renders fast grind anddistribution, ensuring the fineness of ground material.
Speed of grind is adjustable, which makes it suitable for the grind ofvarieties of materials and, furthermore, saves grind time.
Temperature-control system precisely surveys and controls the temperature while grinding.
Rotary blade design inside the cylinder prevents material from sticking tothe wall, making the grind more thorough and the better-distributed.
User-friendly service vehicle with machine eases labor-intensity.
Timer relay controls grind time, making the machine more user

Ordering Information Motor Power Capacity Ascending and Descending Engine Working Travel (mm) Overall Size (mm)
BGD 8050 9 KW 100 Mechanical 700 1400×700×2100
BGD 8051 10 KW 100 Hydraulic  pressure 800 1550×750×1750
BGD 8052 14 KW 150 Mechanical 800 1400×850×2600
BGD 8053 14 KW 150 Hydraulic  pressure 1000 1650×900×1800
BGD 8054 18 KW 200 Mechanical 800 1600×850×2600
BGD 8055 18 KW 200 Hydraulic  pressure 1000 1650×900×1800
BGD 8056 21.5KW 300-400 Mechanical 1000 1700×850×2600
BGD 8057 21.5KW 300-400 Hydraulic  pressure 1000 1650×900×1900
BGD 8058 25 KW 300-500 Hydraulic  pressure 1000-1200 1650×900×1900
