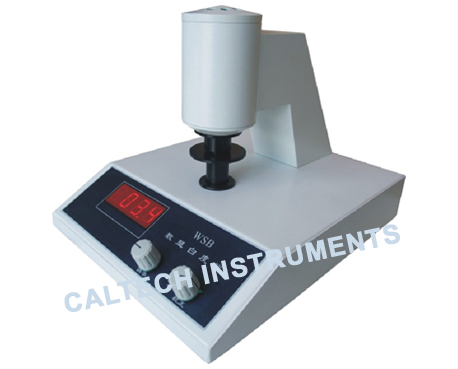

Digital Whiteness Meter
Digital Whiteness Meter
BGD 585 Digital Whiteness Meter consists of light filter, sample clamp and photo-detector. The total whiteness is the whiteness of blue light R457. The instrument is strictly designed according to standard light source A and the condition of illumination test 45/0 stipulated by CLE. It has been tested and trial run thoroughly and conforms to JJG512-87 national measurement testing regulations and is designed according to many national standards.

Main Technical Parameters:
Range of Measurement: 0-100 (Digital Display Type)
Zero Drift:≤0.2/10min
Resolution Ratio: 0.1
Display Drift:≤0.3/3min
Light Source: 12V/30W Halogen Tungsten Lamp
The Stability of Voltage Fluctuation: 0.1
Whiteness formula: The Whiteness of Blue Light WB=R457
The Reappearance of Measurement:≤0.3
Weight: 1.8Kg ;
Dimensions: 260×320×280mm (L×W×H)
Ordering Information: BGD 585--- Digital Whiteness Meter
