| This versatile glossmeter covers a wide range of applications from matt to high gloss measurements conforming to International Standard. Samples can be measured separately at each angle or at 2 or 3 angles simultaneously and effectively processed using the powerful built-in software. And it has many advanced features as below： |
 |
All kinds of coating and finishing surfaces, such as paints, varnishes, printing ink, etc. |
|
Decorative materials, such as marble, granite, polishing brick, ceramic tile and so on. |
|
The other kinds of metallic and non-metallic materials and objects, such as plastic, woodenware, paper, etc. |
|
Complies with standards as：ASTM D 523,D2457；DIN 67530；ISO 2813 ,ISO 7668；JIS Z8741,Bs3900,BS 6161 ETC. |
|
Calibrate automatically. |
|
Simultaneous display 20°/60°/85°-for high gloss to matte coatings |
|
Interface： Serial RS 232 |
|
Software： BGD GLOSS software included for professional documentation in Excel |
|
Memory： 10,000 measurements or 999 data groups |
|
Power Supply： A single battery only. AA size, Rechargeable or alkaline. |
|
Comes Complete With： |
| |
Main Device, Holder with Working Standard, Traceable Certificate, BIUGED GOLSSMETER Data Operator Software, Cable for PC Serial port, USB Adapter （optional）, Users Manual, Carrying Bag. |
| |
- Guaranteed for a year and repaired for ever.
- Anytime be checked free.
- Technical support on the gloss measurement.
- Customizing any glossmeter for a special application. |
|
Energy efficient. Over 100,00 readings with one battery. |
|
| |
| Main Technical Parameters： |
|
Measuring rang：0-199.9-2,000GU |
|
Resolution：±0.1GU |
|
Accuracy：±1.5GU |
|
Stability：±0.4GU/30min |
|
Power Supply：1 battery AA alkaline |
|
Voltage supply ：0.8V-1.5V |
|
Measuring Area：9×10mm；9×16mm；5×39mm |
|
Dimensions：155mm（L）×48mm（D）×75mm（H） |
|
Weight： 400g |
|
Ordering Information： |
| |

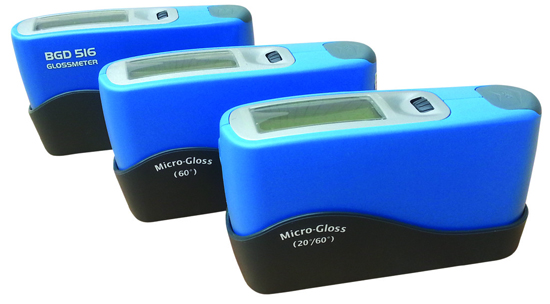

BGD 516/1--- Intelligent Glossmeter （60°） |
| |
BGD 516/2--- Intelligent Dual-Glossmeter /Haze Glossmeter（20°/ 60°） |
| |
BGD 516/3--- Intelligent Tri-Glossmeter （20°/60°/85°） |
|
| |
 |
| |
 |
|
