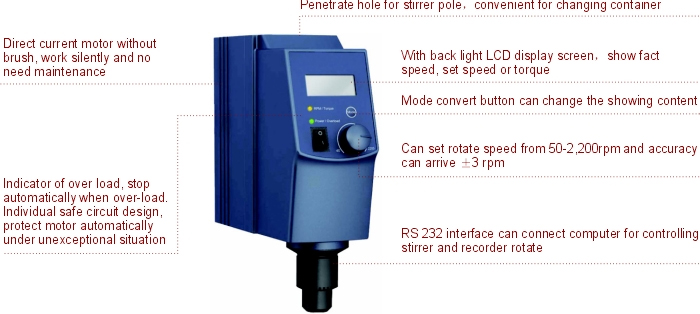

| Overhead Stirrer |
|
|
 |
| These newest stirrers are of the highest quality. The core a direct current brushless motor is explosion-proof and overcomes the disadvantages of traditional stirrers. The stirrers can operate under high load for an extended period of time without any need for maintenance. |
| |
| Features: |
 |
International safety certification：get CE, cTUV us and FCC safety certification issued by German TÜV company |
|
Whole machine is explosion-proof |
|
Setting safety circuit： Automatically cut off the circuit in the event of the motor overheating and other exceptional circumstances. |
|
Overload protection：Motor would automatically stop in case of continuous overload. |
|
Motor protection：When motor is over load, short circuit or any special situation, the machine will alarm and shut down. |
|
Anti-spill samples：PLC control system starts up smoothly, prevent samples overflow. |
|
Closed case：is accordance with international popular DIN/EN60529 standard, high protection gradeIP42, can prevent liquid to splash into the machine and lead to corrosion of the circuits. |
|
| |
 |
| |
| Main Technical Parameters: |
Ordering Information →
Parameters ↓ |
BGD 701 |
BGD 702 |
BGD 703 |
BGD 704 |
| Max. Stirring Capacity（water） |
20 L |
40 L |
| Motor Rating Input, W |
60 W |
120 W |
| Motor Rating Output, W |
50 W |
100 W |
| Speed Range, rpm |
0-2,200 rpm |
50-2,200 rpm |
0-2,200 rpm |
50-2,200 rpm |
| Speed Display Accuracy, rpm |
--- |
±3 rpm |
--- |
±3 rpm |
| Display |
LED |
LCD |
LED |
LCD |
| Speed Display Resolution |
1 rpm |
1 rpm |
| Max. Torque |
40 N.cm |
60 N.cm |
| Max. Viscosity |
10,000 mPa.s |
50,000 mPa.s |
| Chuck Range Diameter |
0.5-13 |
0.5-13 |
| Dimension（W×H×D） |
83x220x186 mm |
83x220x186 mm |
| Weight |
2.4 kg |
2.4 kg |
2.8 kg |
2.8 kg |
| Packing List |
① LCD or LED digital overhead stirrer head----1 pc
② Flat Base ---1 pc
③ Main Pole------1 pc
④ Dispersing pole with four leaf-------1 pc |
|
| |
 |
|
| |
|
